Note

• The radiator cap that has not passed the test can’t release the pressure when it reaches the pressure value.

• The damaged thermostat is unable to carry out a large cycle, resulting in a continuous increase in the radiator pressure.
• The radiator fan does not turn, resulting in high temperature in the water tank.

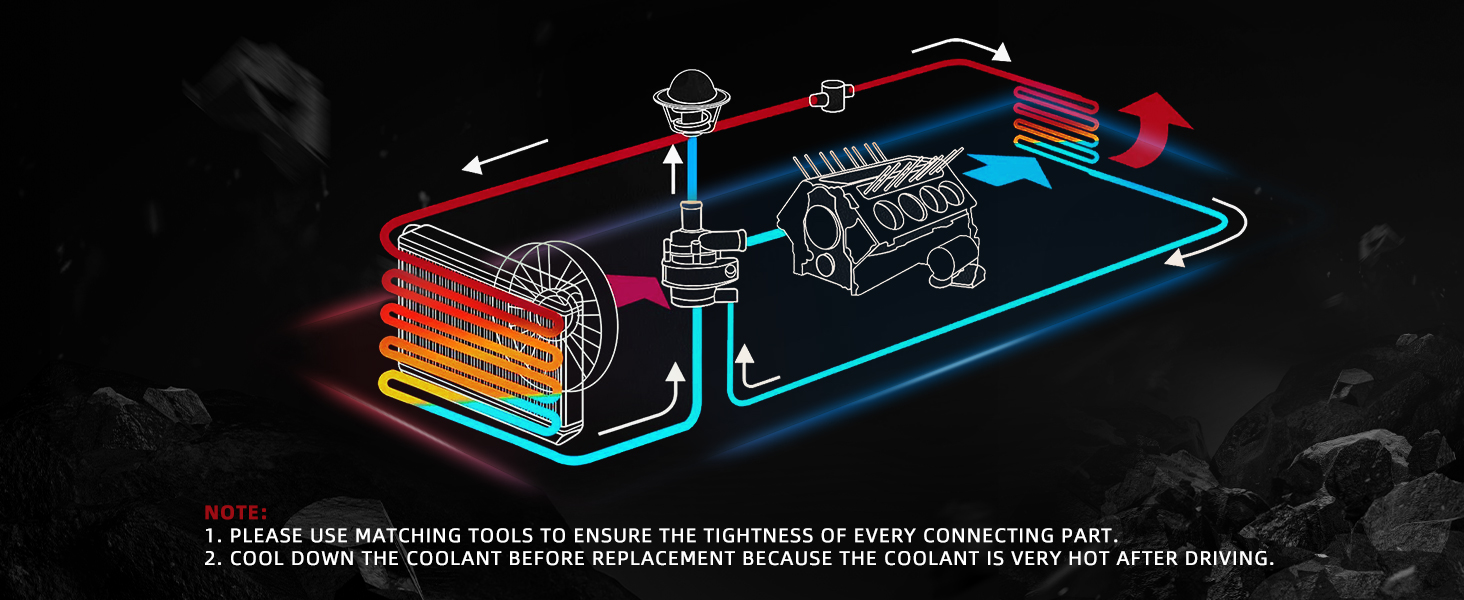

• Drain the air from the cooling system. Refer to the user manual or repair manual.
• Please refer to owner's manual to add coolant.
• Do not open the hood until the steam has subsided. The engine compartment may be very hot, causing serious injuries such as burns.
• Please stop the vehicle immediately, when “ENGINE OVERHEAT/High Temperature” shows on the dashboard or steam comes out from under the hood.
• Keep hands and clothing (especially a tie, a scarf) away from the fans and belts. Failure to do so may cause the hands or clothing to be caught, resulting in serious injuries.

• Do not loosen the radiator cap while the engine and radiator are hot. Serious injuries, such as burns, may result from hot coolant and steam released under pressure.

Features

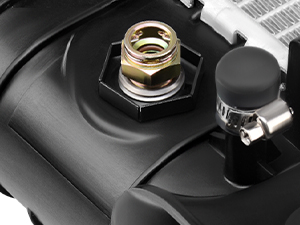

• The Core was made from high-quality Aluminum.  Effective Heat Dissipation.

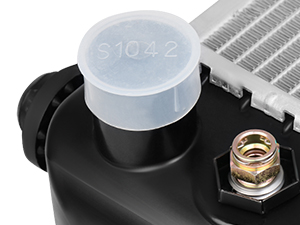

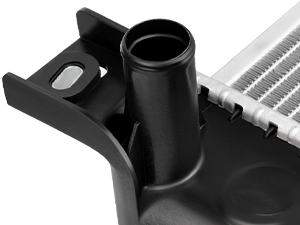

• Good sealing.  All of the new radiators will be inspected before selling (including a 100% leaking test).

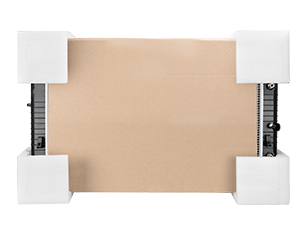

• Radiator is really easy to get damaged during delivery. We have upgraded our package design to avoid this kind of problem.

Details

• Core Material: Aluminum

• Tank Material: Plastic

• Core Dimension: 15-3/4 In. x 30-3/16 In.

• Core Thicknes: 0.63 In.

• Inlet Diameter: 1-5/16 In.

• Outlet Diameter: 1-5/16 In.

• Row: 1

• Oil Cooler: Not Included

• Interchange Part Number: 13270, 164000P350, 164000V110, CSF3624, CU13270, Q13270, RAD13270, RK1678, TO3010338, TO3010339, TO3010340
