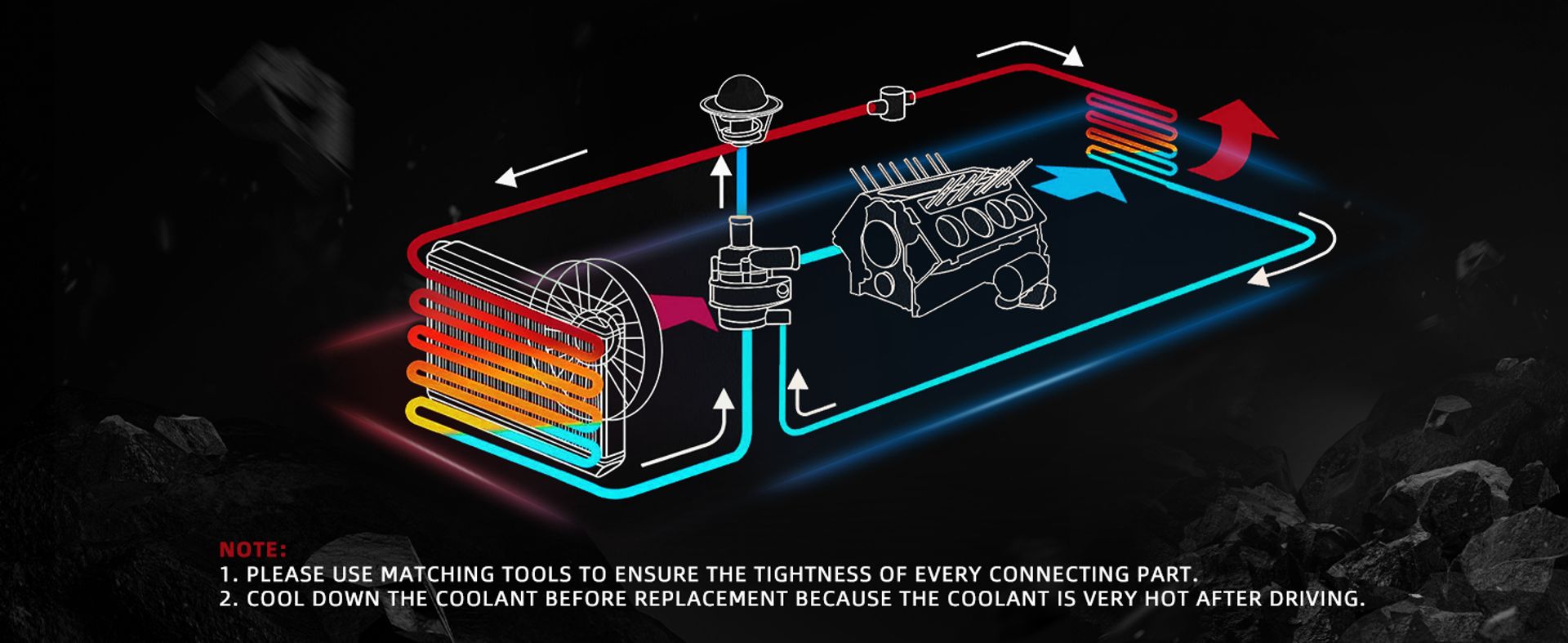

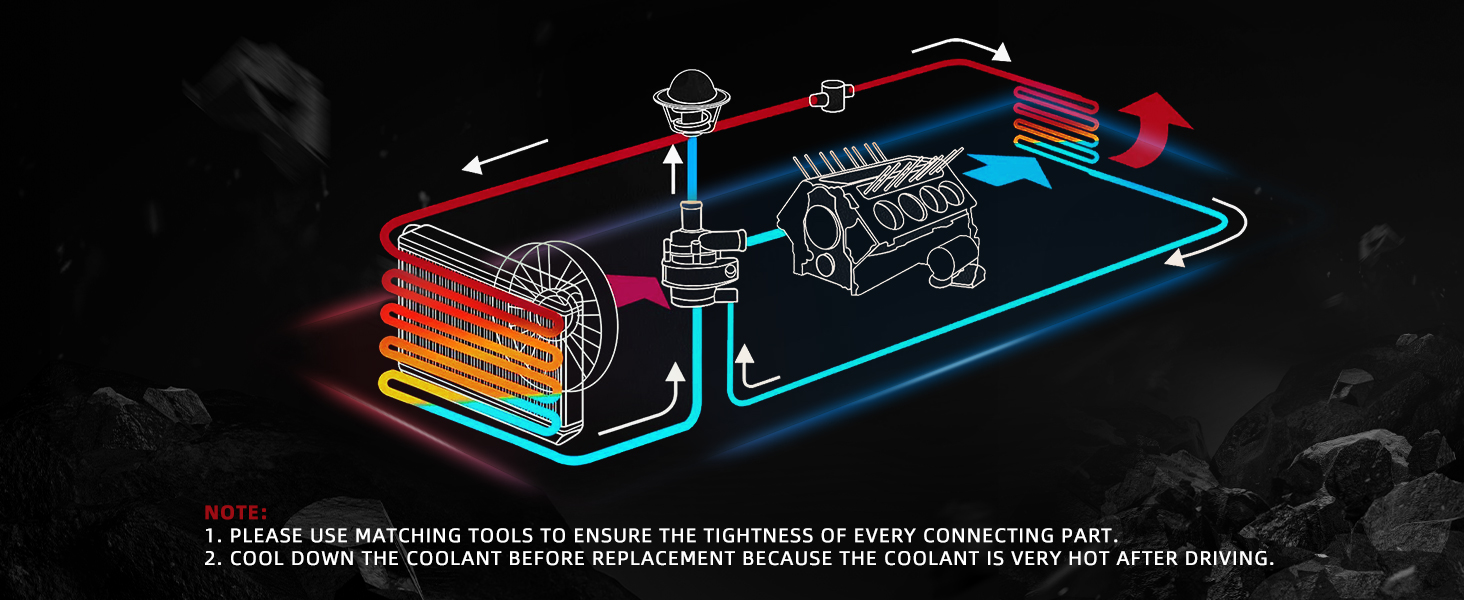

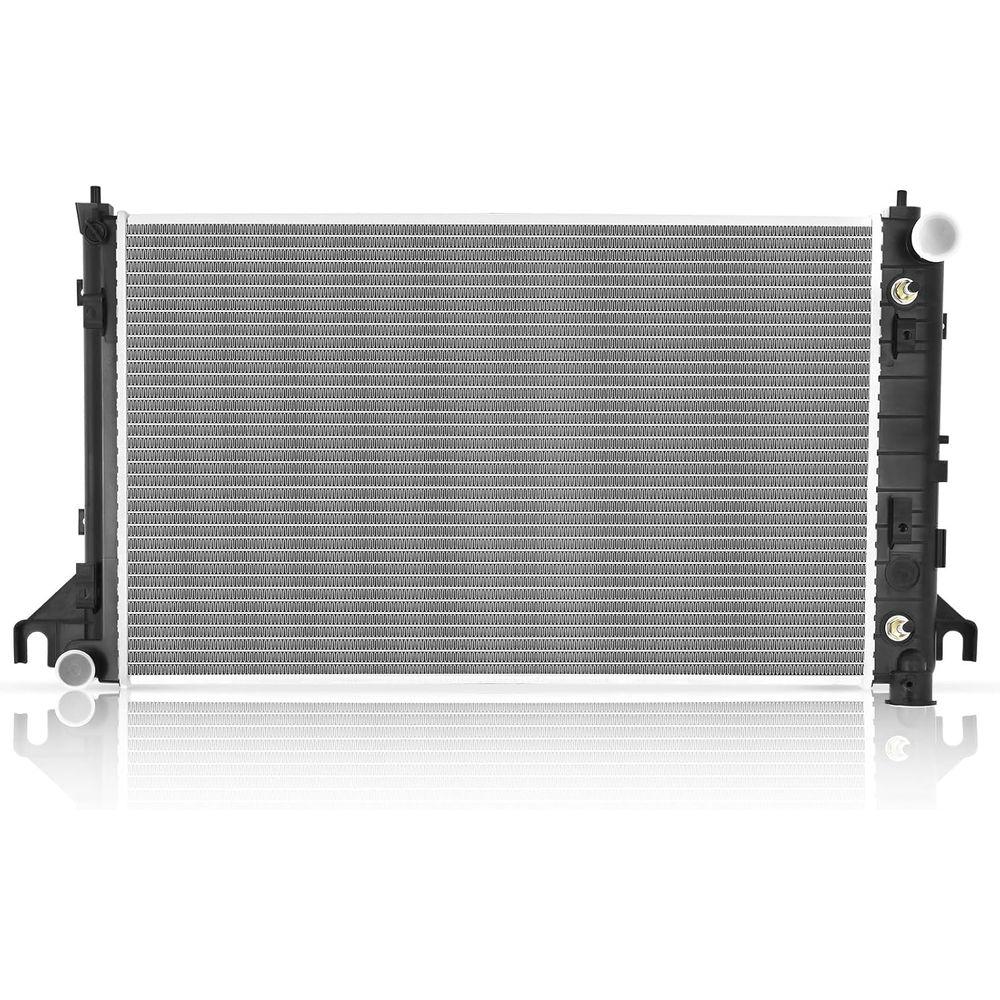

The radiator is a vital component of a vehicle’s cooling system, which helps to remove the heat from the engine and keep your car running smoothly and safely at peak performance. YITAMOTOR radiator is constructed using high density multi-louvered aluminum fins to ensure better cooling efficiency and thus improve your vehicle’s performance. Besides, advanced PA66 tanks have excellent high temperature resistance & pass leak testing for added durability of long use. All radiators are designed to meet or exceed OE standard for fit, form and function.

Fitment

• 1994 - 1997 Dodge Ram 1500 V6 3.9L, V8 5.2L & 5.9L All Models

• 1998 - 2001 Dodge Ram 1500 V6 3.9L & V8 5.2L only  (NOT For V8 5.9L)

• 1994 - 1997 Dodge Ram 2500 V8 5.2L & V8 5.9L only (NOT for L6 5.9L & V10 8.0L)

• 1994 - 1997 Dodge Ram 3500 V8 5.9L only  (NOT for L6 5.9L & V10 8.0L)

• 1994 - 1996 Dodge Ramcharger V8 5.9L All Trims

• 1999 - 2001 Dodge Ramcharger V8 5.2L only (NOT for V8 5.9L)

Features

• COMPATIBILITY: YITAMOTOR radiator is compatible with 1994 1995 1996 1997 Dodge Ram 3500 Ram 2500 1994-2001 Ram 1500 3.9L 5.2L 5.9L V6 V8, please check carefully the compatibility before purchase (Radiator Cap Not Included).

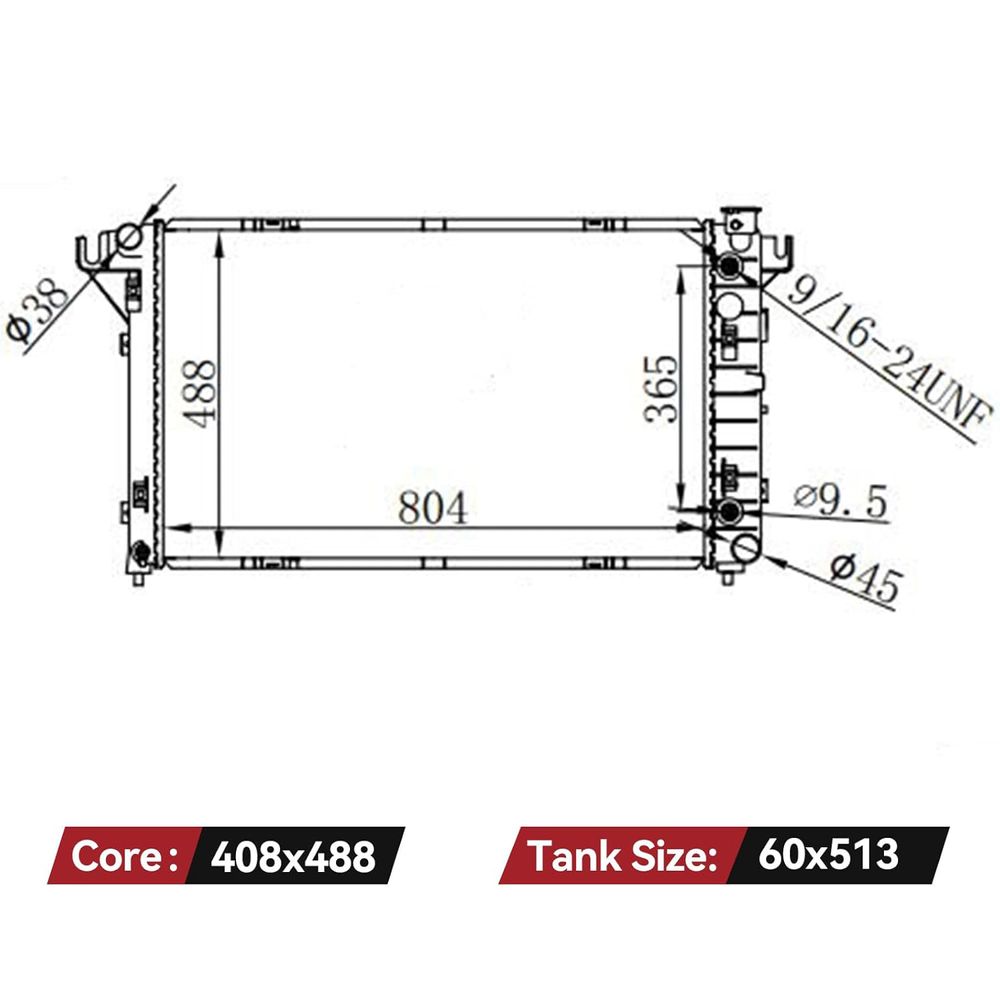

• DIMENSION: Core Size: 31.65"x 19.21", Header Size: 20.2" x 2.36". OE design makes it a precise fit for your vehicle and easy to replace with clear installation instruction.

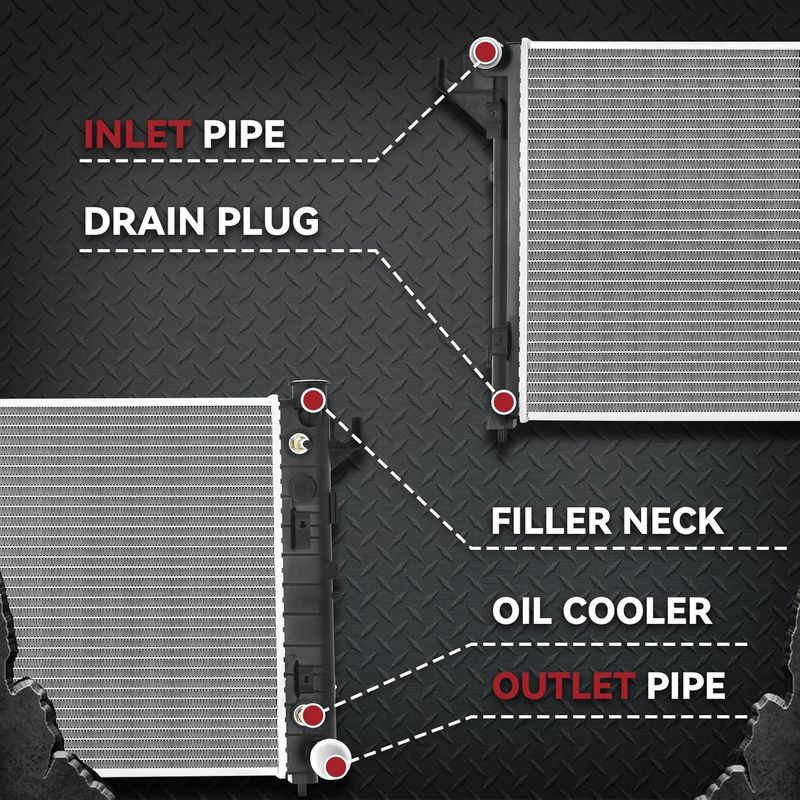

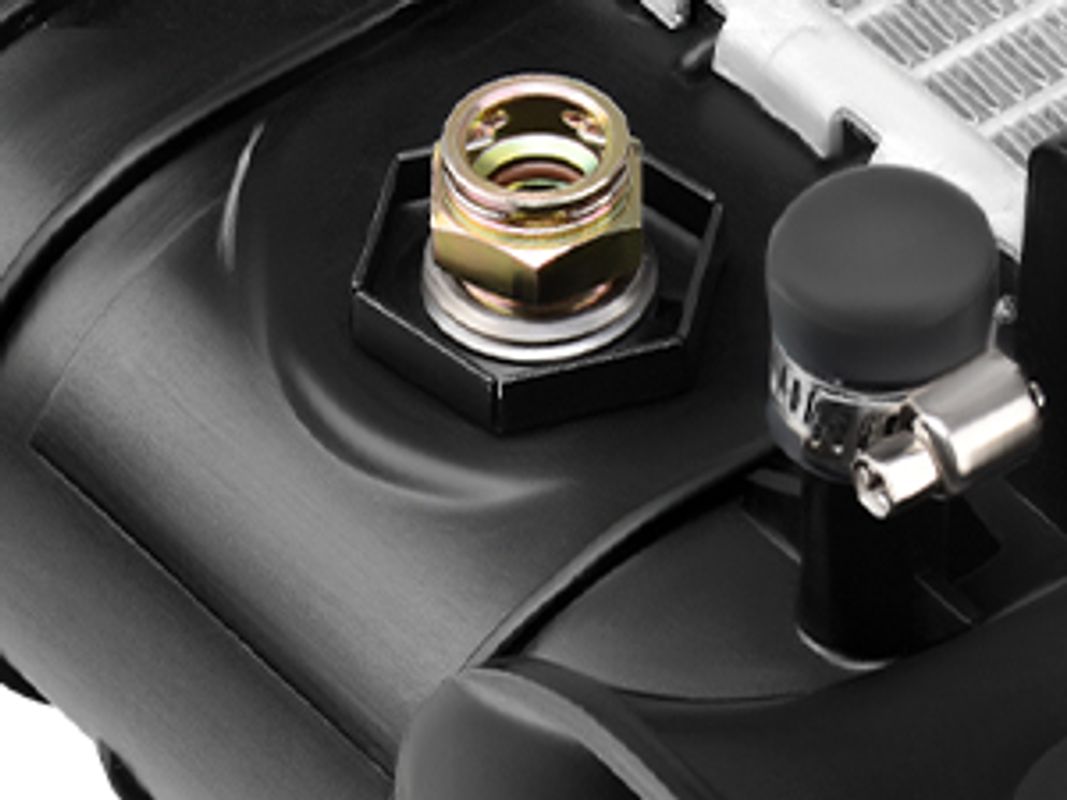

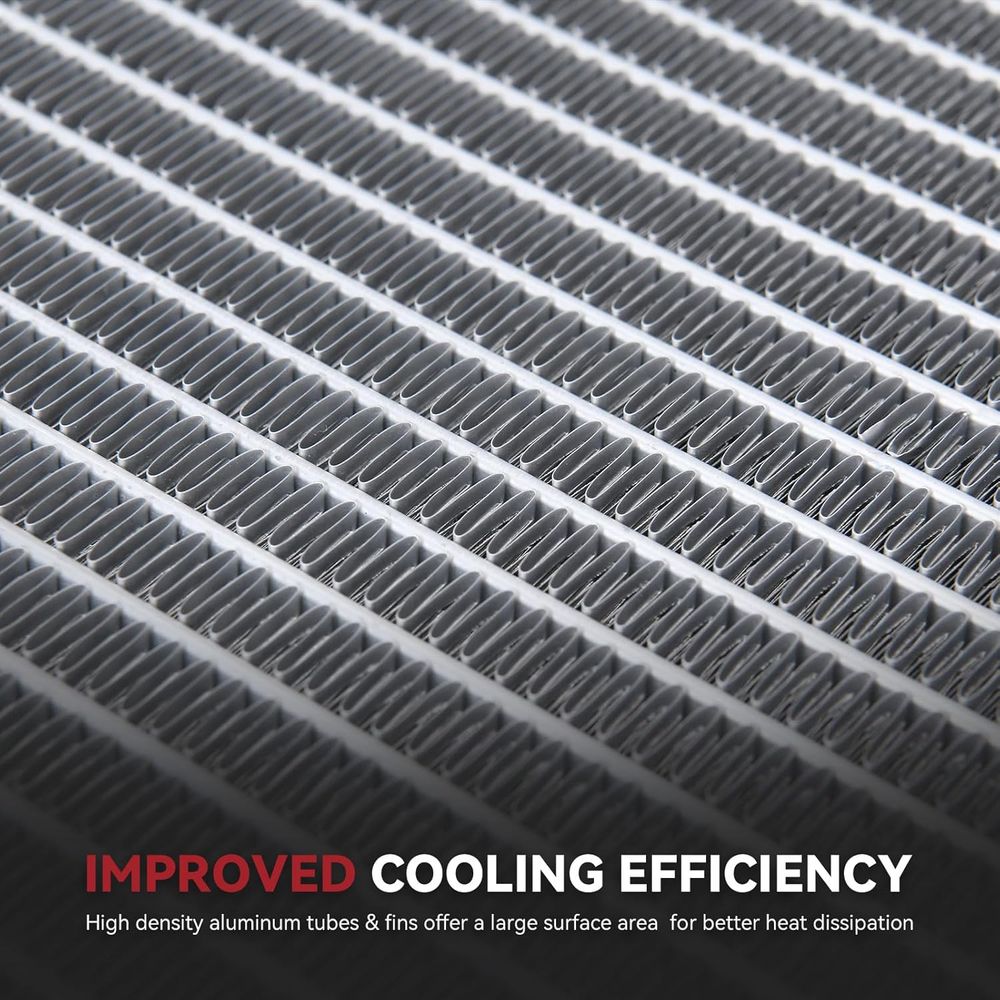

• HIGH COOLING EFFICIENCY: The core of this radiator is built with high density aluminum tubes and fins which has a larger radiation area for maximum heat dissipation and stronger rigidity for added durability; Aluminum oil cooler also achieves the optimal cooling effect to ensure the engine works properly.

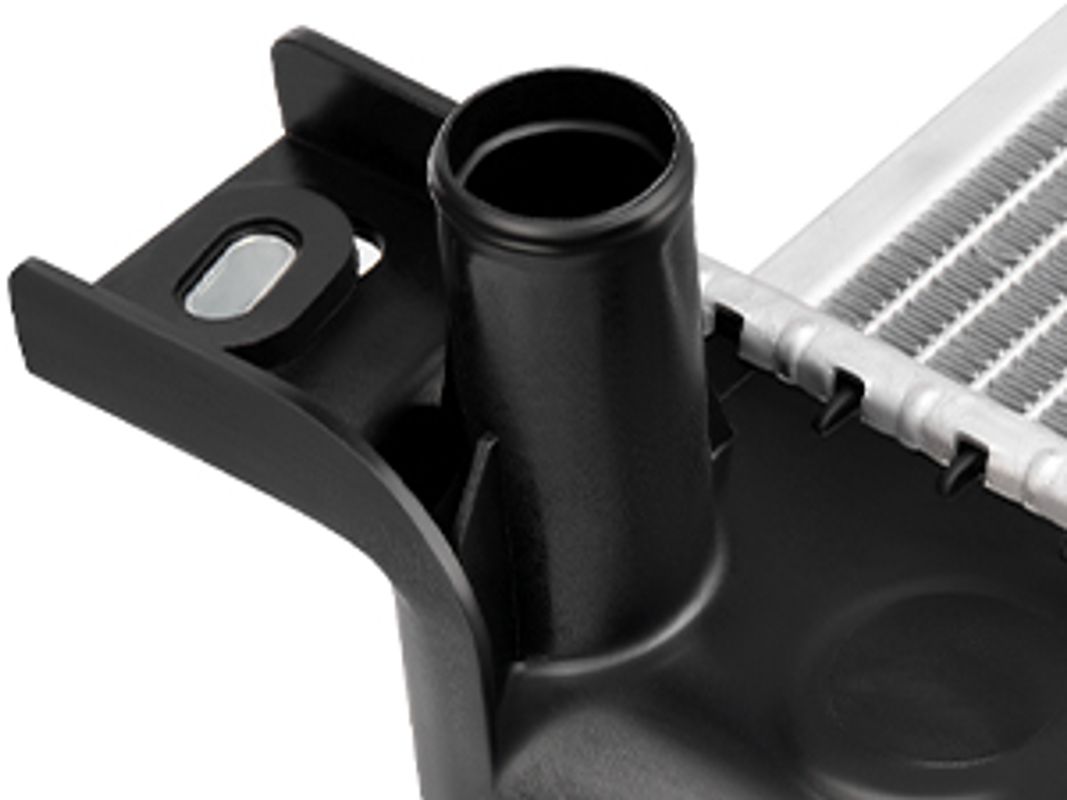

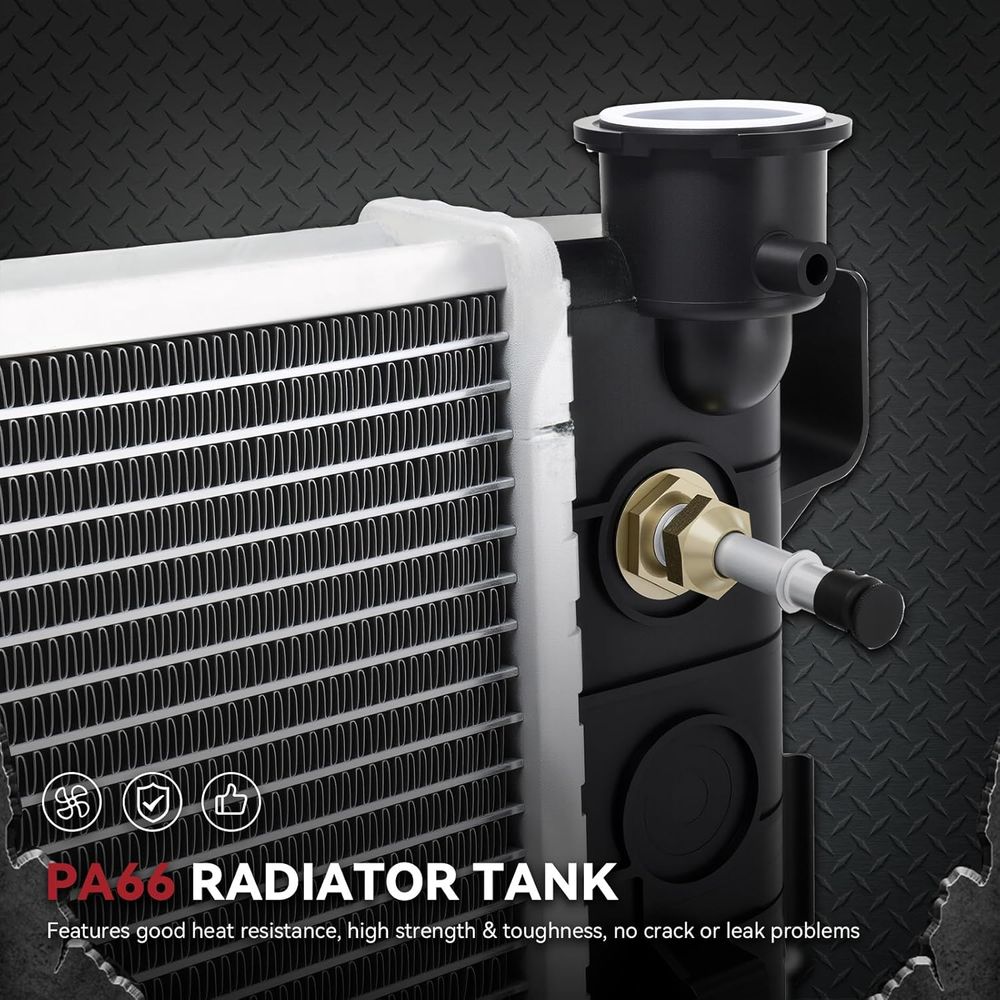

• LEAKPROOF & ANTI-CRACK: Seamlessly welded with high grade glass fiber reinforced nylon PA66 outlet/inlet tanks, featuring better heat resistance against extreme engine temperature. No more crack or leak worries!

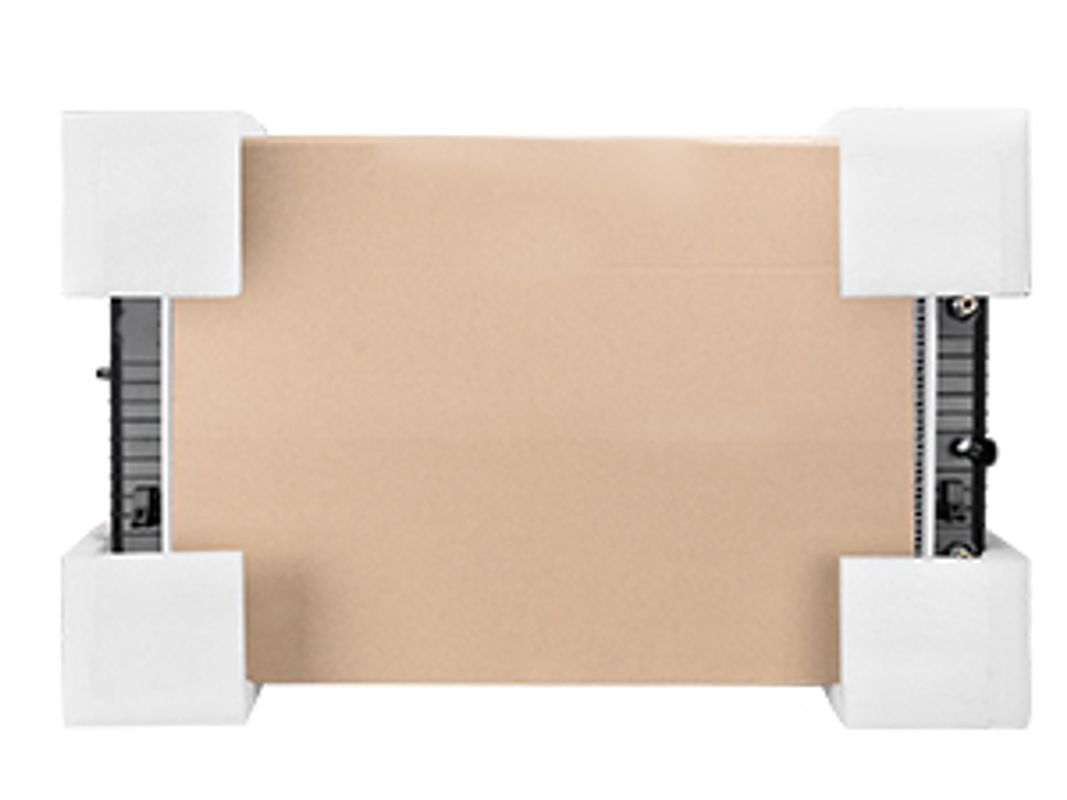

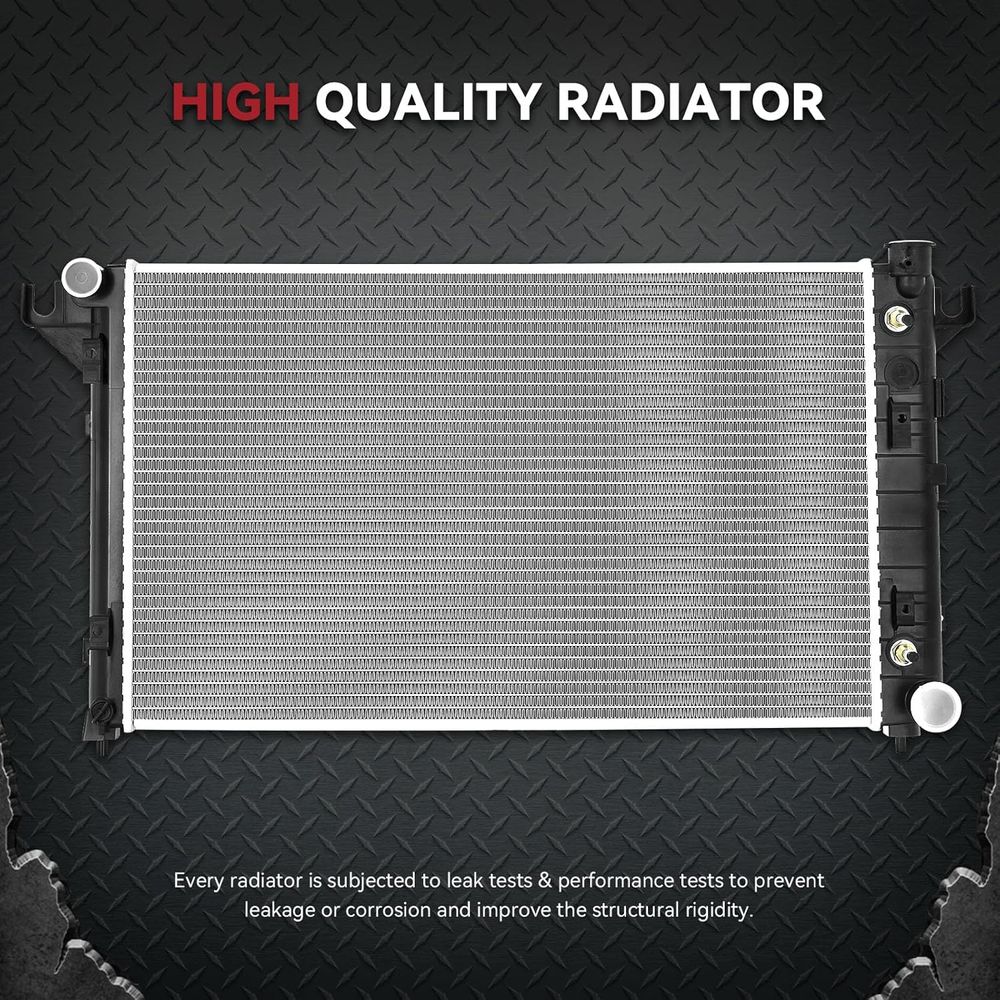

• RELIABLE & WELL-PACKAGED: All our radiators are leak-tested & well-protected with PE foam & multi-layered cardboard to ensure a snug and solid packaging. Professional installation would be highly recommended.

Note

• The radiator cap that has not passed the test can’t release the pressure when it reaches the pressure value.


• The damaged thermostat is unable to carry out a large cycle, resulting in a continuous increase in the radiator pressure.


• The radiator fan does not turn, resulting in high temperature in the water tank.


• Drain the air from the cooling system. Refer to the user manual or repair manual.


• Please refer to owner's manual to add coolant.


• Do not open the hood until the steam has subsided. The engine compartment may be very hot, causing serious injuries such as burns.


• Please stop the vehicle immediately, when “ENGINE OVERHEAT/High Temperature” shows on the dashboard or steam comes out from under the hood.


• Keep hands and clothing (especially a tie, a scarf) away from the fans and belts. Failure to do so may cause the hands or clothing to be caught, resulting in serious injuries.

• Do not loosen the radiator cap while the engine and radiator are hot. Serious injuries, such as burns, may result from hot coolant and steam released under pressure.
