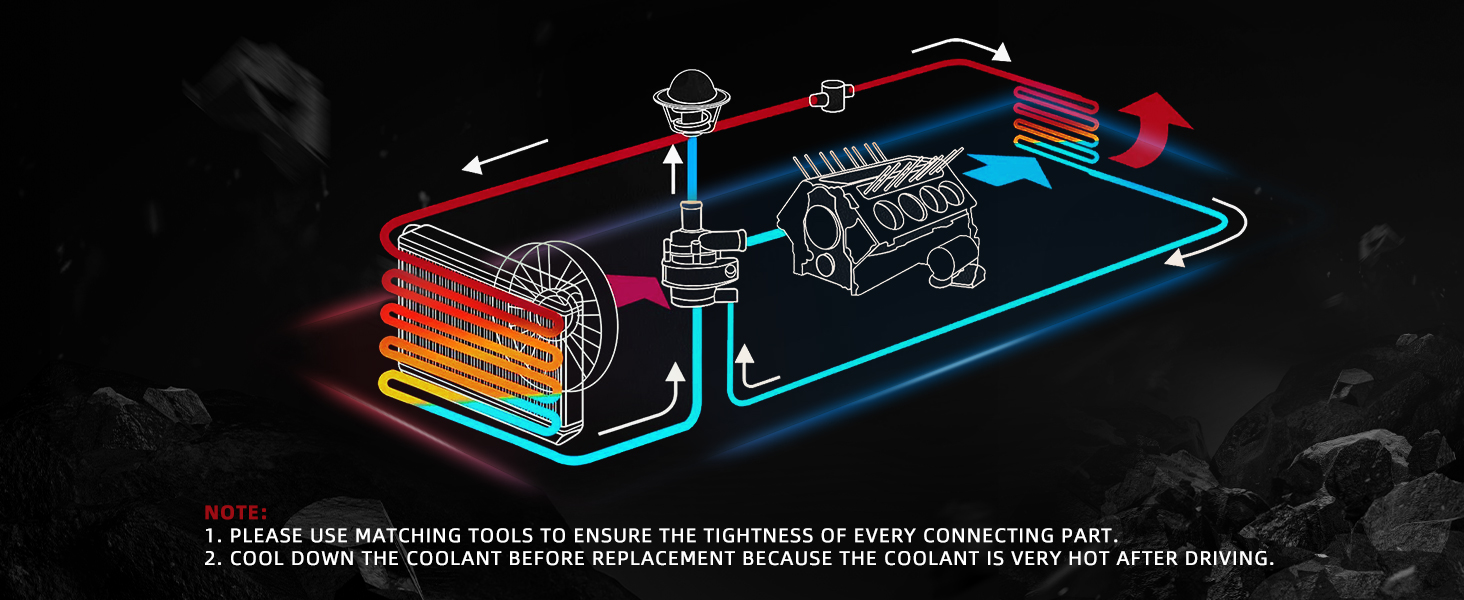

The radiator is a vital component of a vehicle’s cooling system, which helps to remove the heat from the engine and keep your car running smoothly and safely at peak performance. YITAMOTOR radiator is constructed using high density multi-louvered aluminum fins to ensure better cooling efficiency and thus improve your vehicle’s performance. Besides, advanced PA66 tanks have excellent high temperature resistance & pass leak testing for added durability of long use. All radiators are designed to meet or exceed OE standard for fit, form and function.

Fitment

• 2004            Ford Expedition 4.6L & 5.4L (ONLY Fit Build From 09/2003 To 12/2003)

• 2005 - 2006 Ford Expedition 5.4L - 1 Inch Thick Core, Standard Duty Cooling

• 2004 - 2005 Ford F-150 4.2L V6 Automatic Transmission Only

• 2005            Ford F-150 4.6L & 5.4L - 1 Inch Thick Core, Standard Duty Cooling

• 2006 - 2008 Ford F-150 4.2L & 4.6L & 5.4L - 1 Inch Thick Core, Standard Duty Cooling

• 2006 - 2008 Lincoln Mark LT 5.4L - 1 Inch Thick Core, Standard Duty Cooling

• 2005 - 2006 Lincoln Navigator 5.4L - 1 Inch Thick Core, Standard Duty Cooling

• NOTICE:

• 2004 - 2005 F-150 4.2L NOT FOR Manual Transmission.

• NOT FOR 1-7/16 in. Thick Core;  Super Duty Cooling.

Features

• COMPATIBILITY: YITAMOTOR OE radiator is compatible with 2004-2006 Ford Expedition 2005-2008 F-150 2005-2006 Lincoln Navigator 2006 2007 2008 Mark LT 4.2L 4.6L 5.4L V6 V8 CU2818, please check carefully the compatibility before purchase (Radiator Cap Not Included).

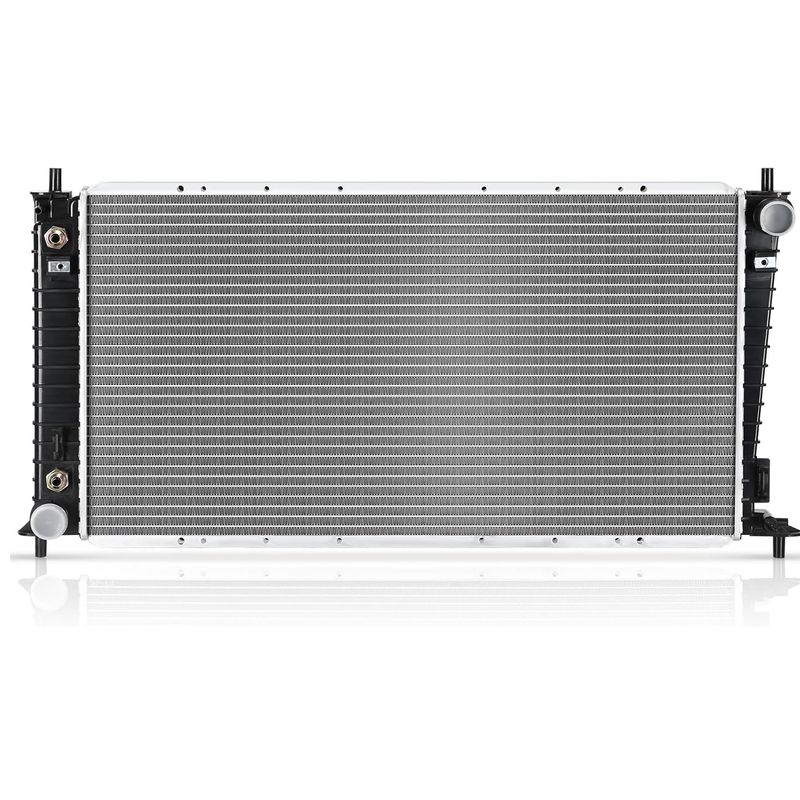

• DIMENSION: Core Size: 32.0"x17.0", Header Size: 17.2" x 1.9"x 3.0". OE design makes it a precise fit for your vehicle and easy to replace with clear installation instruction.

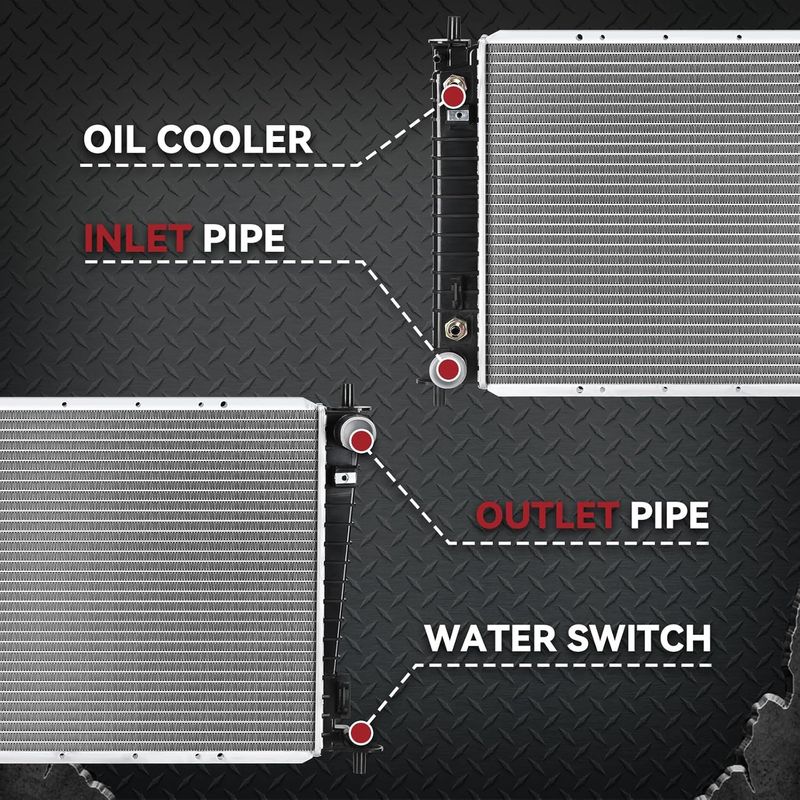

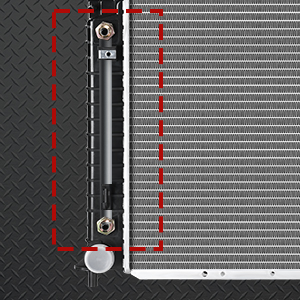

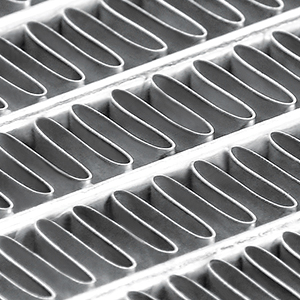

• HIGH COOLING EFFICIENCY: The core of this radiator is built with high density aluminum tubes and fins which has a larger radiation area for maximum heat dissipation and stronger rigidity for added durability; Aluminum oil cooler also achieves the optimal cooling effect to ensure the engine works properly.

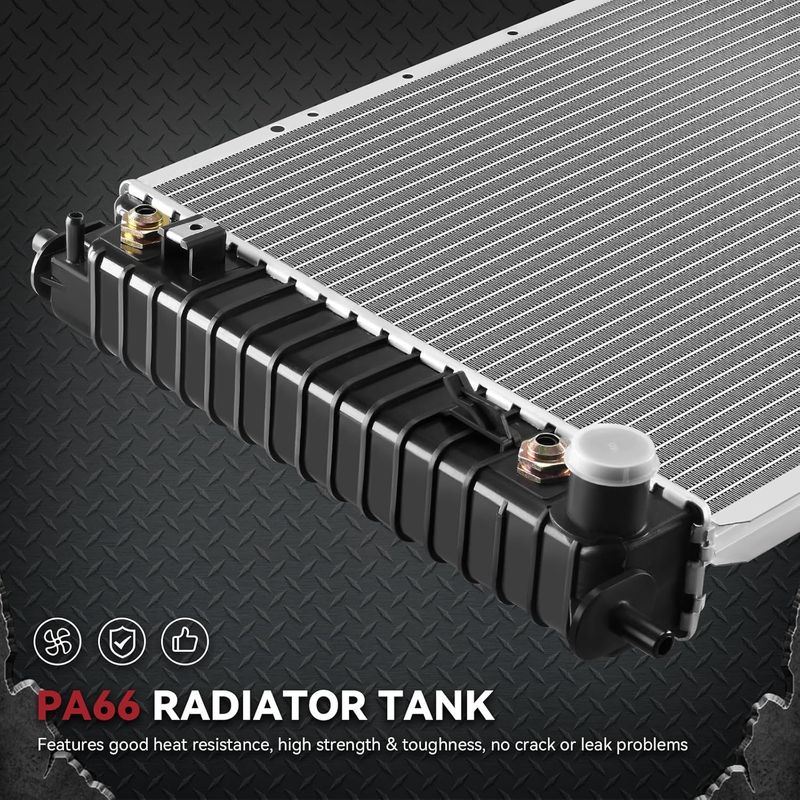

• LEAKPROOF & ANTI-CRACK: Seamlessly welded with high glass fiber reinforced nylon PA66 outlet/inlet tanks, featuring better heat against extreme engine temperature. No more crack or leak worries!

• RELIABLE & WELL-PACKAGED: All our radiators are leak-tested & well-protected with PE foam & multi-layered cardboard to ensure a snug and solid packaging. Professional installation would be highly recommended.

Note

• The radiator cap that has not passed the test can’t release the pressure when it reaches the pressure value.


• The damaged thermostat is unable to carry out a large cycle, resulting in a continuous increase in the radiator pressure.


• The radiator fan does not turn, resulting in high temperature in the water tank.


• Drain the air from the cooling system. Refer to the user manual or repair manual.


• Please refer to owner's manual to add coolant.


• Do not open the hood until the steam has subsided. The engine compartment may be very hot, causing serious injuries such as burns.


• Please stop the vehicle immediately, when “ENGINE OVERHEAT/High Temperature” shows on the dashboard or steam comes out from under the hood.


• Keep hands and clothing (especially a tie, a scarf) away from the fans and belts. Failure to do so may cause the hands or clothing to be caught, resulting in serious injuries.

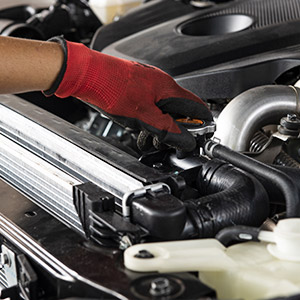

• Do not loosen the radiator cap while the engine and radiator are hot. Serious injuries, such as burns, may result from hot coolant and steam released under pressure.
