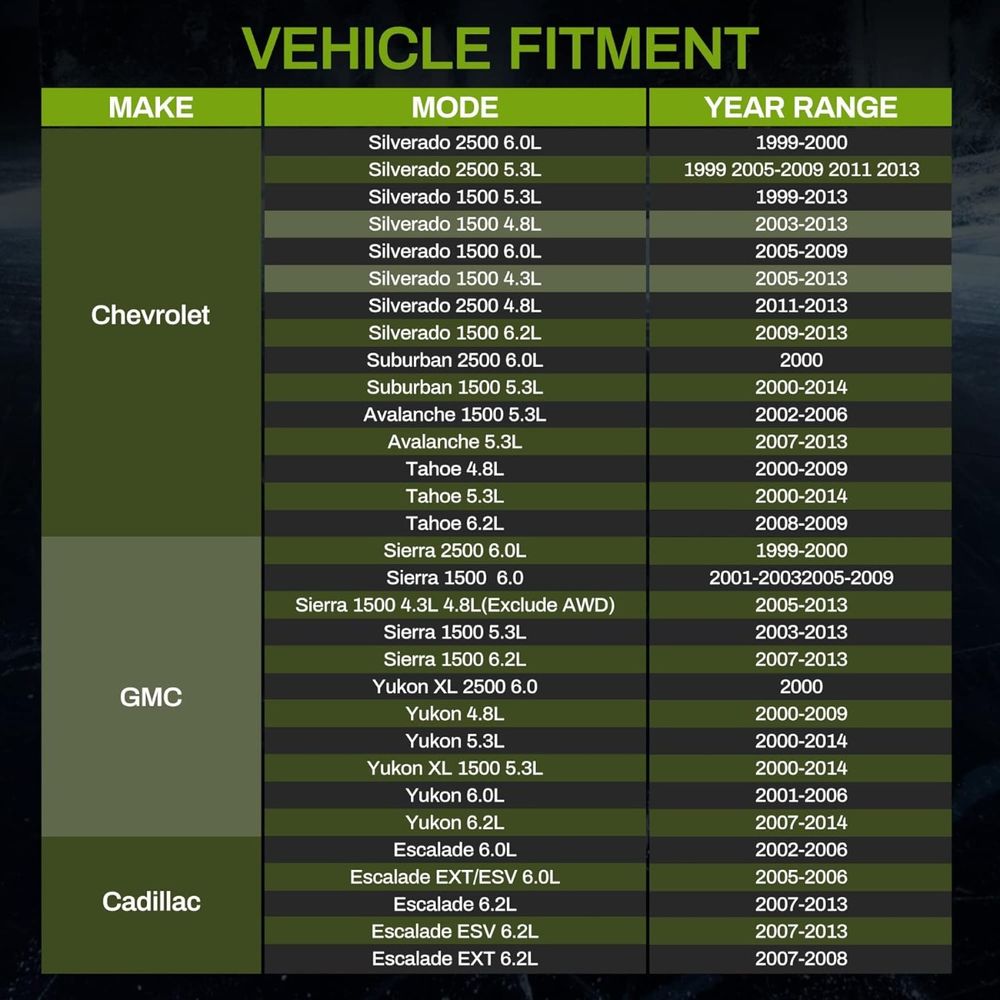

FITMENT:

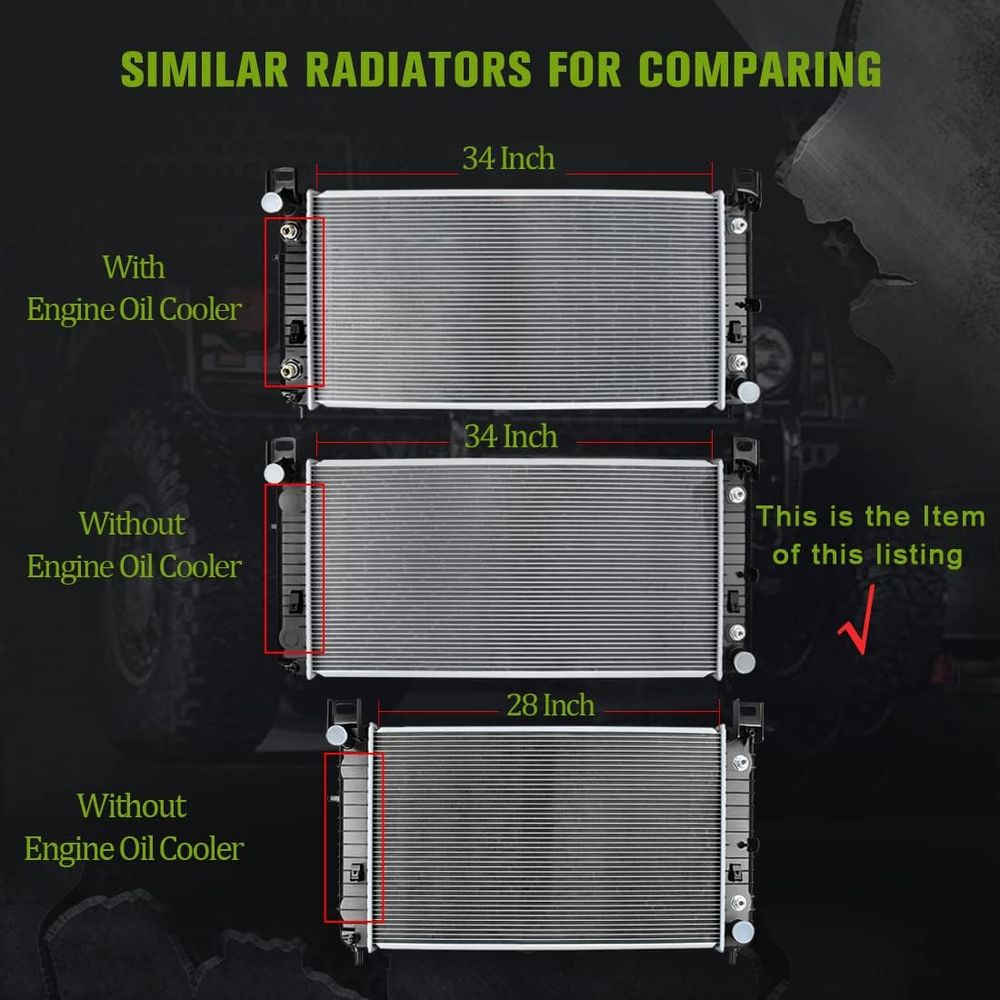

1. Please make sure that the length of this Radiator core (Between Tanks) is 34 inches


   (NOT FOR 28").

1. FIT Models W/O Engine Oil Cooler  (ONLY one side have Oil Cooler)


For 2002 - 2013 Cadillac Escalade Base 5.3L, 6.0L & 6.2L
For 2011 - 2013 Cadillac Escalade Luxury 6.2L
For 2008 - 2013 Cadillac Escalade Platinum 6.2L
For 2012            Cadillac Escalade Special Edition 6.2L
For 2005 - 2013 Cadillac Escalade ESV 6.0L & 6.2L
For 2005 - 2008 Cadillac Escalade EXT 6.0L & 6.2L
For 2007 - 2013 Chevrolet Avalanche 5.3L & 6.0L
For 2002 - 2006 Chevrolet Avalanche 1500 5.3L All Trims
For 2005 - 2012 Chevrolet Silverado 1500 Base 4.3L
For 2003 - 2005 Chevrolet Silverado 1500 Base 4.8L
For 1999 - 2008 Chevrolet Silverado 1500 Base 5.3L
For 2002            Chevrolet Silverado Custom 4.3L
For 2004 - 2006 Chevrolet Silverado 1500 Hybrid 5.3L
For 2005 - 2011 Chevrolet Silverado 1500 LS 4.3L
For 2003 - 2013 Chevrolet Silverado 1500 LS 4.8L
For 1999 - 2013 Chevrolet Silverado 1500 LS 5.3L
For 2005            Chevrolet Silverado 1500 LS 6.0L
For 2005            Chevrolet Silverado 1500 LT 4.3L
For 2003 - 2013 Chevrolet Silverado 1500 LT 4.8
For 1999 - 2013 Chevrolet Silverado 1500 LT 5.3L
For 2005 - 2009 Chevrolet Silverado 1500 LT 6.0L
For 2010 - 2013 Chevrolet Silverado 1500 LT 6.2L
For 2007 - 2013 Chevrolet Silverado 1500 LTZ 5.3L, 6.0L & 6.2L
For 2005 - 2006 Chevrolet Silverado 1500 SS 6.0L
For 2005 - 2013 Chevrolet Silverado 1500 WT 4.3L
For 2003 - 2013 Chevrolet Silverado 1500 WT 4.8L
For 2002 - 2013 Chevrolet Silverado 1500 WT 5.3L
For 2010 - 2013 Chevrolet Silverado 1500 XFE 5.3L
For 2004            Chevrolet Silverado 1500 Z71 4.3L, 4.8L & 5.3L
For 2007            Chevrolet Silverado 1500 Classic 4.3L, 4.8L, 5.3L & 6.0L
For 2001 - 2006 Chevrolet Silverado 1500 HD 6.0L
For 2007            Chevrolet Silverado 1500 HD Classic 6.0L
For 2003 - 2005 Chevrolet Silverado 2500 400 SS 5.3L
For 2011 - 2012 Chevrolet Silverado 2500 Base 4.8L
For 1999 - 2012 Chevrolet Silverado 2500 Base 5.3L
For 1999 - 2000 Chevrolet Silverado 2500 Base 6.0L
For 2007            Chevrolet Silverado 2500 Cheyenne 5.3L
For 2013            Chevrolet Silverado 2500 LS 4.8L
For 1999 - 2013 Chevrolet Silverado 2500 LS V8 5.3L
For 1999 - 2000 Chevrolet Silverado 2500 LS 6.0L
For 1999 - 2000 Chevrolet Silverado 2500 LT 5.3L
For 1999 - 2000 Chevrolet Silverado 2500 LT 6.0L
For 2000 - 2014 Chevrolet Suburban 1500 5.3L All Trims
For 2000            Chevrolet Suburban 2500 6.0L All Trims
For 2000 - 2014 Chevrolet Tahoe 4.8L, 5.3L & 6.2L All Trims
For 2005            GMC Sierra 1500 Base 4.3L & 4.8L
For 2002 - 2005 GMC Sierra 1500 Base 5.3L
For 2005 - 2013 GMC Sierra 1500 Denali 6.0L & 6.2L
For 2005 - 2006 GMC Sierra 1500 Hybrid 5.3L
For 2006            GMC Sierra 1500 SL 4.3L
For 2006 - 2013 GMC Sierra 1500 SL 4.8L
For 2003 - 2013 GMC Sierra 1500 SL 5.3L
For 2005 - 2013 GMC Sierra 1500 SLE 4.8L
For 2003 - 2013 GMC Sierra 1500 SLE 5.3L
For 2005 - 2009 GMC Sierra 1500 SLE 6.0L
For 2010 - 2013 GMC Sierra 1500 SLE 6.2L
For 2003 - 2013 GMC Sierra 1500 SLT 5.3L
For 2005 - 2009 GMC Sierra 1500 SLT 6.0L
For 2009 - 2013 GMC Sierra 1500 SLT 6.2L
For 2005 - 2013 GMC Sierra 1500 WT 4.3L & 4.8L
For 2003 - 2013 GMC Sierra 1500 WT 5.3L
For 2010 - 2013 GMC Sierra 1500 XFE V8 5.3L
For 2007            GMC Sierra 1500 Classic 4.3L, 4.8L, 5.3L & 6.0L All Trims
For 2001 - 2006 GMC Sierra 1500 HD 6.0L All Trims
For 2007            GMC Sierra 1500 HD Classic 6.0L All Trims
For 1999 - 2000 GMC Sierra 2500 5.3L & 6.0L All Trims
For 2007 - 2012 GMC Yukon Base 5.3L & 6.2L
For 2001 - 2014 GMC Yukon Denali 6.0L & 6.2L
For 2006            GMC Yukon SL 4.8L & 5.3L
For 2000 - 2014 GMC Yukon SLE & SLT 4.8L & 5.3L
For 2000 - 2014 GMC Yukon XL 1500 5.3L & 6.2L All Trims
For 2000            GMC Yukon XL 2500 6.0L All Trims
For 2008 - 2009 Hummer H2 Adventure, Base, Luxury 6.2L

DETAILS:

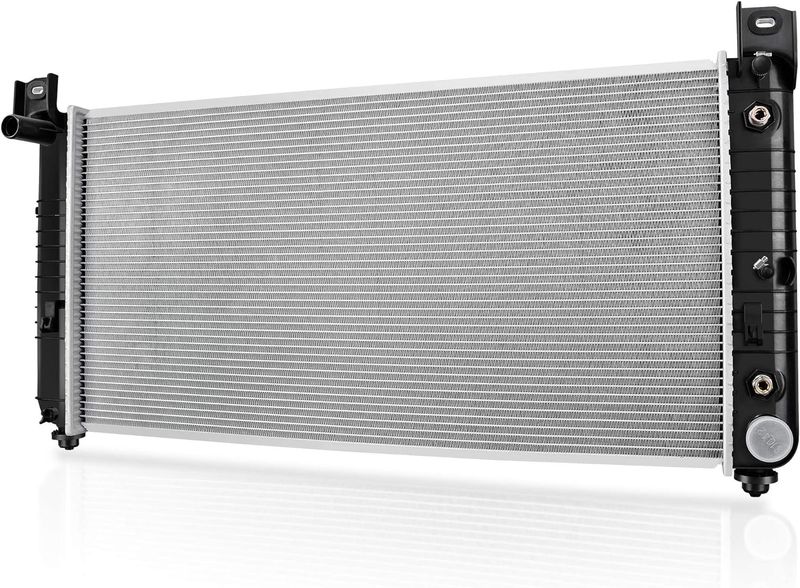

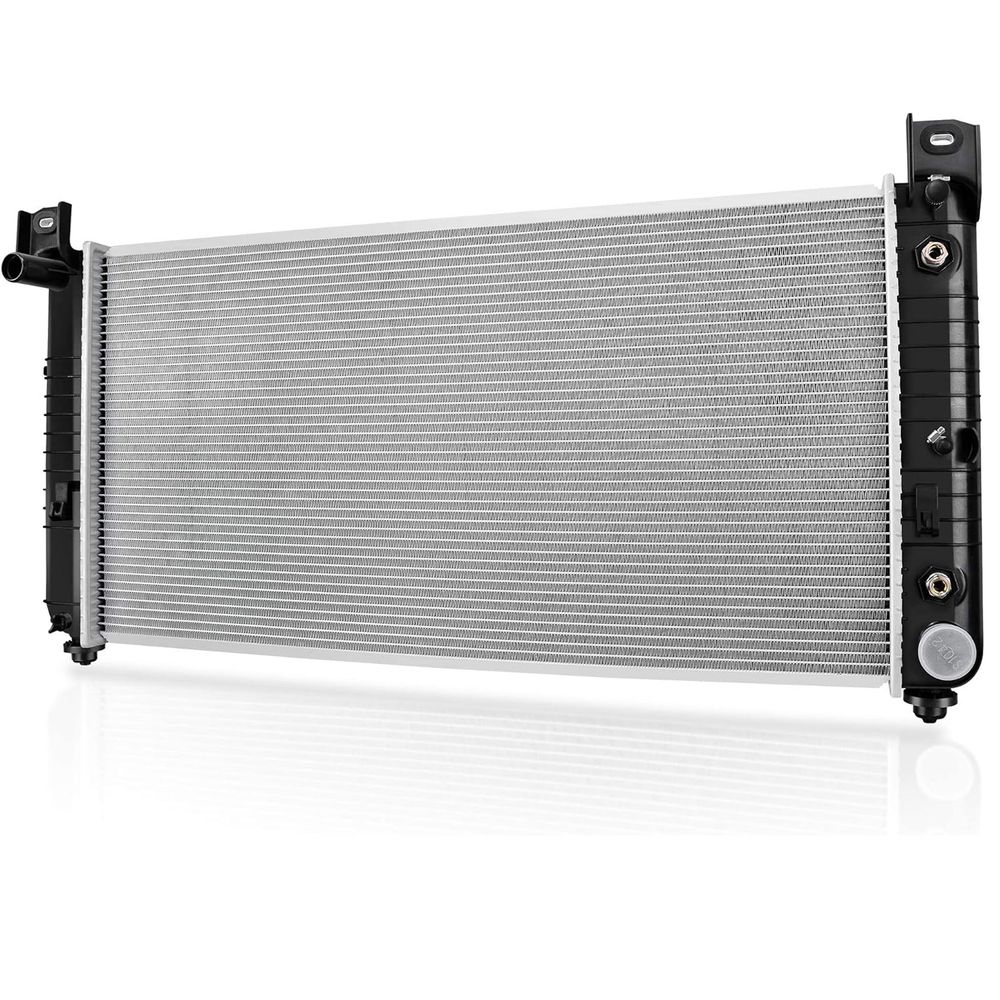

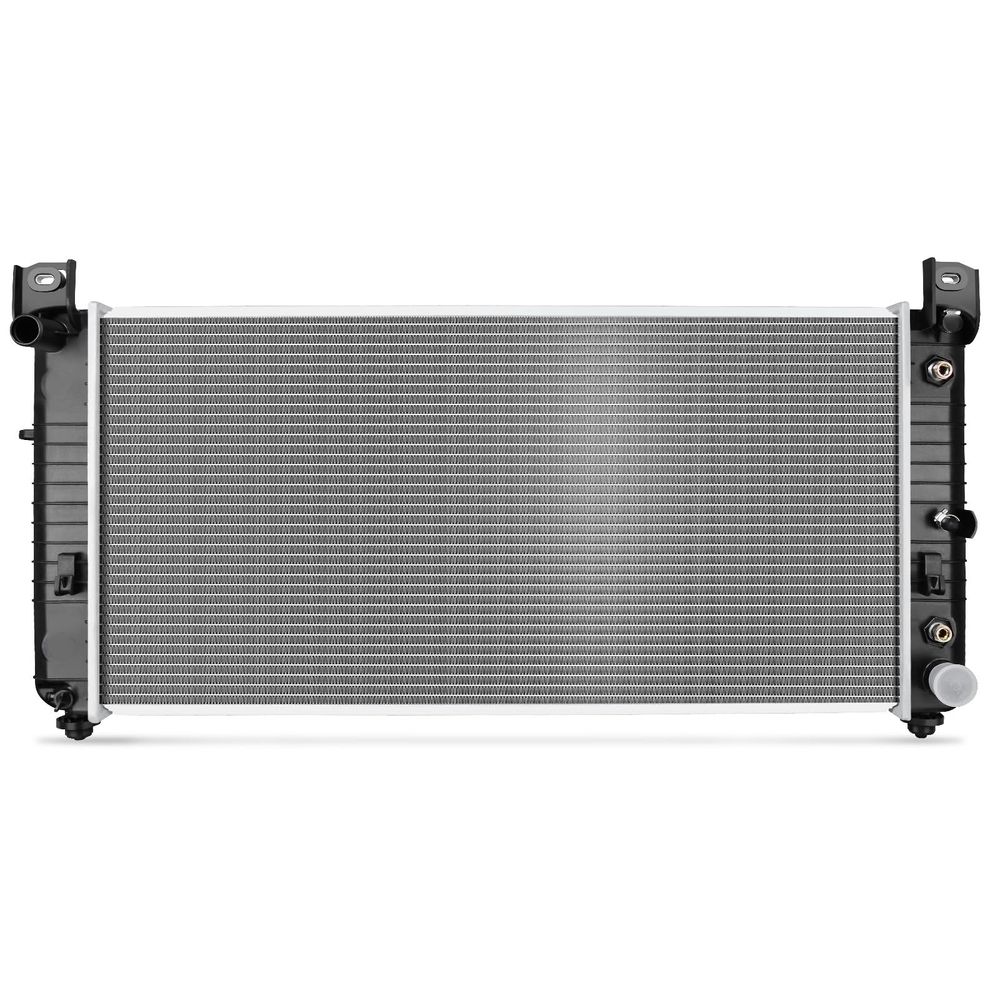

Core Material: Aluminum
Tank Material: Plastic

Core Dimension:  34'' (Core length) x 17''  (NOT FOR 28 inch)

Core Thickness: 1"

Inlet Diameter: 1.6''
Outlet Diameter: 1.3''
Row:  1

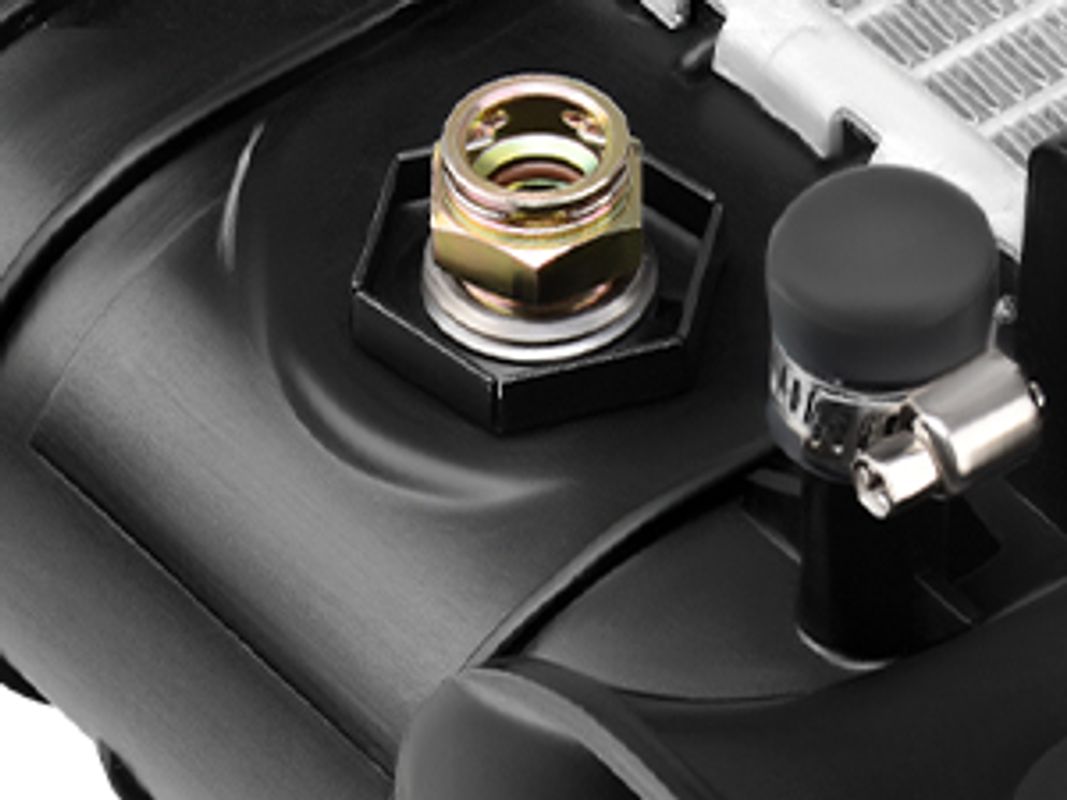

Transmission Oil Cooler: Include ( Notes: Only one side has oil cooler, Engine Oil Cooler is not included)

Type of Transmission: Automatic or Manual Transmission

Interchange Part Number: CU2423, GM3010275, GM3010475, Q2423, RAD2423, 15193108, 15252638, 15841571, 2423, 52486595, 52487604

Color: Black

FEATURES:

1. The Core was made from high-quality Aluminum. Effective Heat Dissipation.

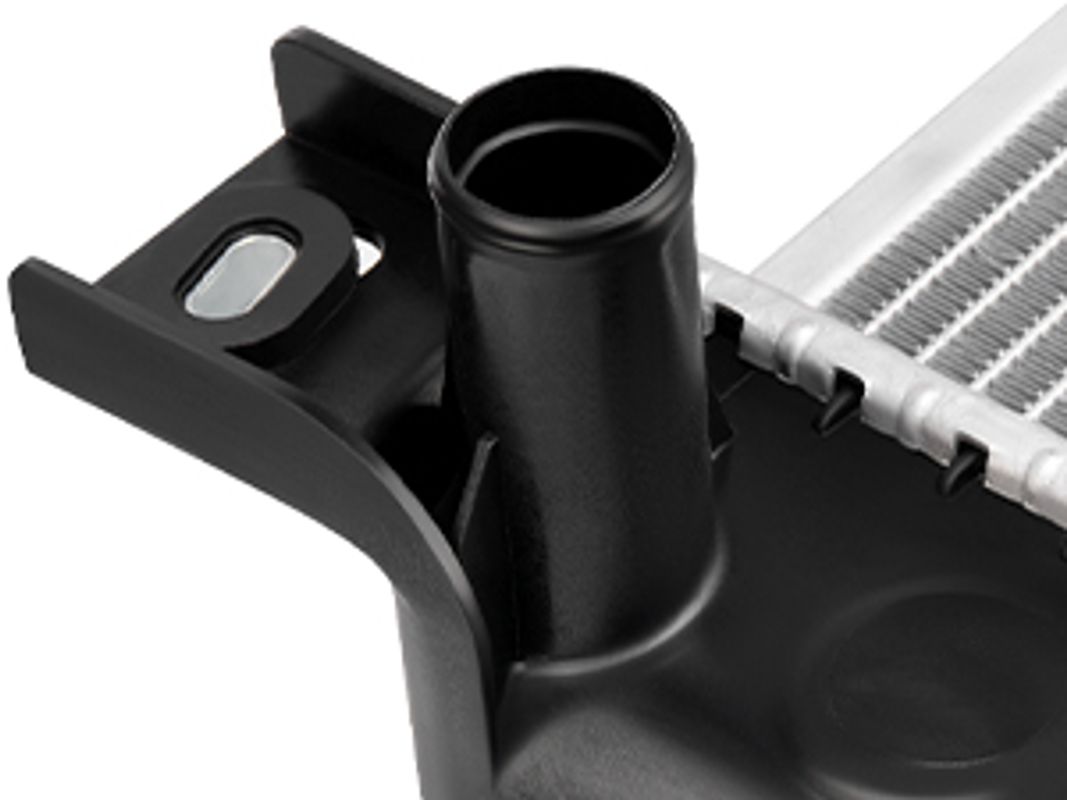

2. Good sealing.All of the new radiators will be inspected before selling (including a 100% leaking test).

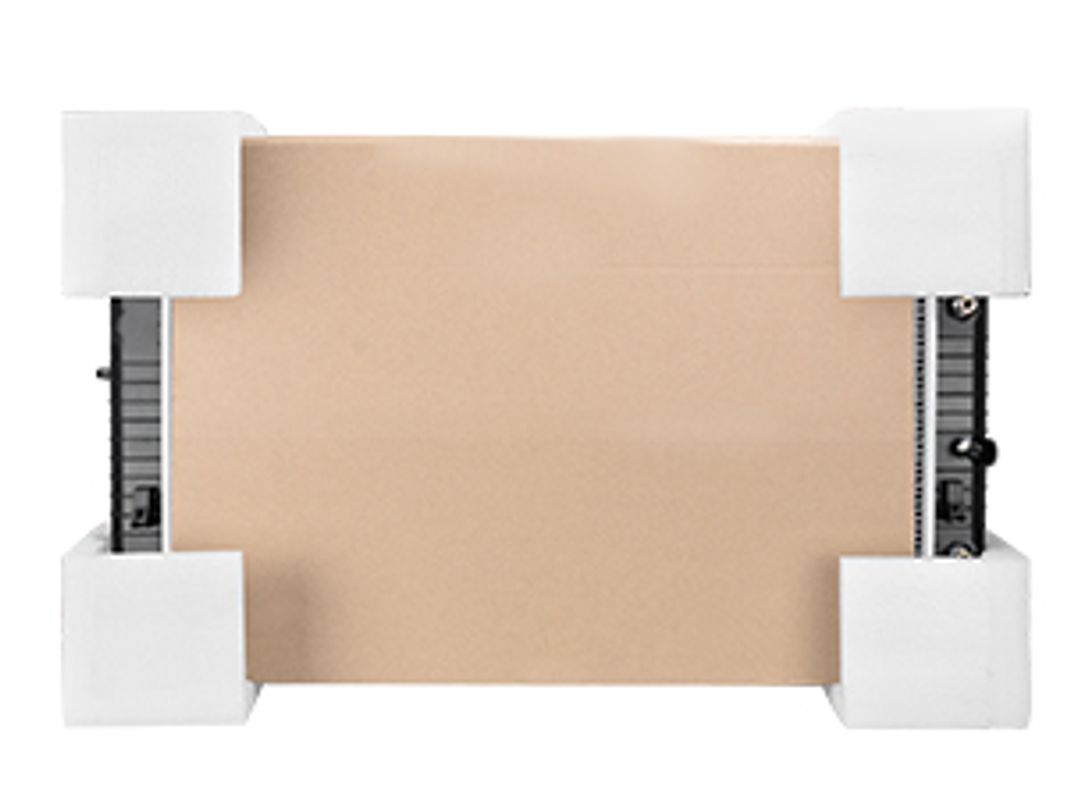

3. Radiator is really easy to get damaged during delivery. We have upgraded our package design to avoid this kind of problem.


Note:

1. The radiator cap that has not passed the test can’t release the pressure when it reaches the pressure value.
   2. The damaged thermostat is unable to carry out a large cycle, resulting in a continuous increase in the radiator pressure.
   3. The radiator fan does not turn, resulting in high temperature in the water tank.
   4. Drain the air from the cooling system. Refer to the user manual or repair manual.

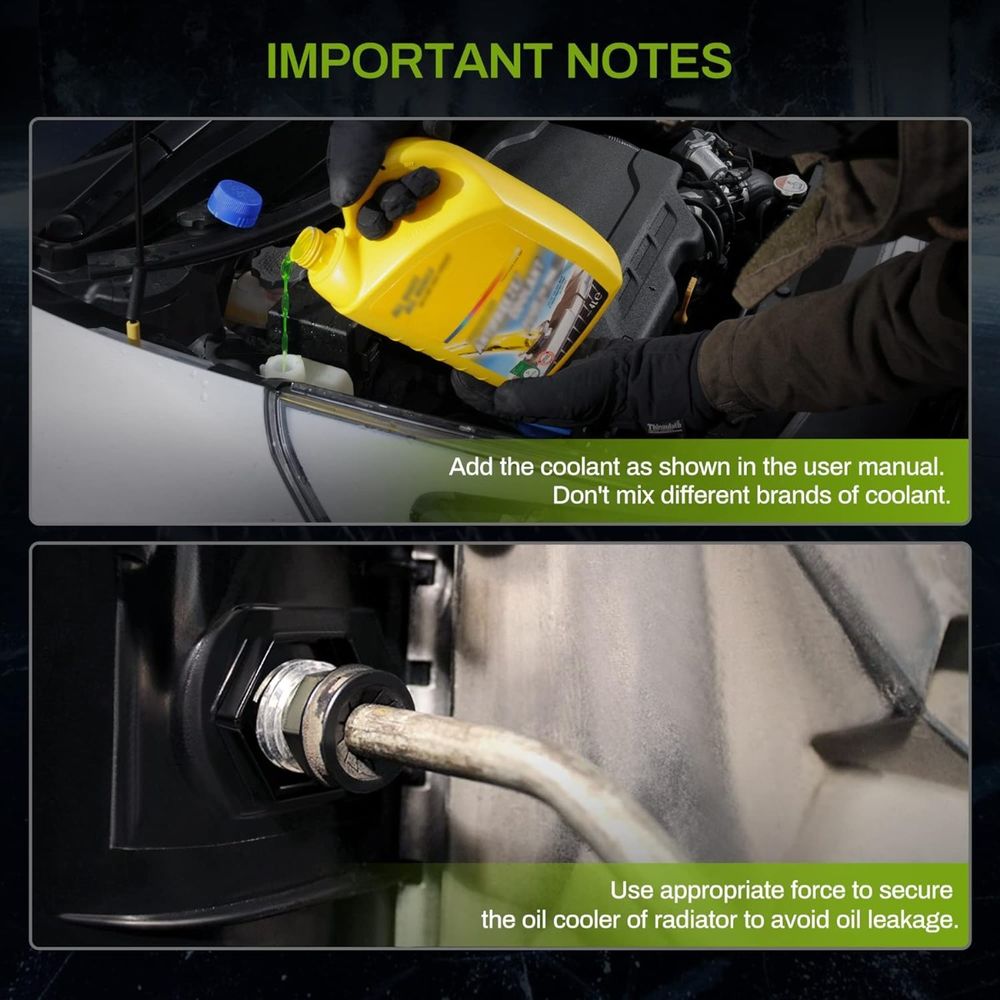

   5. Please refer to owner's manual to add coolant.
   6. Do not open the hood until the steam has subsided. The engine compartment may be very hot, causing serious injuries such as burns.
   7. Please stop the vehicle immediately, when “ENGINE OVERHEAT/High Temperature” shows on the dashboard or steam comes out from under the hood.
   8. Keep hands and clothing (especially a tie, a scarf) away from the fans and belts. Failure to do so may cause the hands or clothing to be caught, resulting in serious injuries.
   9. Do not loosen the radiator cap while the engine and radiator are hot. Serious injuries, such as burns, may result from hot coolant and steam released under pressure.

There are 2 types of installation methods of the Fast connector:

1. Remove the original mount, insert the tube, and tighten the nut at the tip of tube.
2. The nut at the end of the tube is not needed, move it away from the tip. Next, insert the tube into the mount and push it to the bottom. The snap spring on the mount will keep the tube intact.
